Measurement Instruments

Generally a measuring instrument is defined as a device which can be used for measuring a physical quantity. The measurement is explained as the activity of obtaining and comparing physical quantities of real-world objects and events. Surfaces and materials such as electric cables, metal particles, wooden bodies and particles, plastic pipes, ferrous and non-ferrous metals are a few of the objects where the measuring equipments have been applied for measurements and acquiring other data.
The transfer point from floor to ceiling, detect materials, levelling and vertical alignment, squaring, measure angle of slop, monitor sub-surface movements, estimating the distance of an object, evaluating the level and angle of surfaces, measuring levels at building sites are a few of the major applications of measuring instruments.

We deal with a wide variation of measuring instruments, namely Detector, Point Laser, Line Laser, Rotation Laser, Surface Laser, Optic Level, Inclinometer, Angle Measurer, Rangefinder, Laser Receiver, Building Tripod, Wall Mounter, Telescopic pole, Levelling Staff which caters to various applications. With an assembled list of every measuring instruments from all the leading brands across the globe, we offer a comprehensive list for our customers to choose from.

Test Data
  • Detector
  • Point Laser
  • Line Laser
  • Rotation Laser
  • Surface Laser
  • Optic Level
  • Inclinometer
  • Angle Measurer
  • Rangefinder
  • Laser Receiver
  • Building Tripod
  • Wall Mounter
  • Telescopic pole
  • Levelling Staff

Detector

Product : GMS 120

  • Part no : 0 601 081 000
  • Detectable materials : Electrical cables, metals, wooden substructures
  • Max. Measurement depth : 120 mm
  • Automatic deactivation facility, approx : 5 min
  • Power supply : 1x9 V 6LR61
  • Weight : 0.27 Kg

Product: D-tect 150 CNT

  • Part no : 0 601 010 055
  • Detectable materials : Plastic pipes, ferrous metals, non-ferrous metals, wooden substructures, live cables
  • Max. Measurement depth : 150 mm
  • Accuracy : ± 5 min
  • Automatic deactivation facility, approx : 5 min
  • Power supply : 4x1.5V LR6 (AA)
  • Weight : 0.7 Kg

Point Laser

Product : GPL 5

  • Part no : 0 601 066 200
  • Working range : 30 m
  • Accuracy : ± 0.3 mm/m
  • Tripod thread : 1/4", 5/8"
  • Dust and splash protection : IP 5X
  • Weight : 0.25 Kg

Line Laser

Product : GLL 2

  • Part no : 0 601 063 700
  • Working range : 10 m
  • Levelling accuracy : 0.3 mm/m
  • Self levelling range : ± 0.4
  • Laser class : 2
  • Dust and splash protection : IP 5X
  • Power supply : 3x1.5V LR6(AA)
  • Weight : 0.25 Kg

Product : GCL 25(Standalone)

  • Part no : 0 601 066 B00
  • Laser class: 2
  • Working range: 30 m
  • Levelling accuracy: ± 0,3 mm/m
  • Self-levelling range: ± 4°
  • Power supply: 4 x 1.5V LR6 (AA)
  • Tripod connection: 1/4" & 5/8"
  • Weight: 1.5 kg

Product : GLL 2X

  • Part no : 0 601 063 A80
  • Laser diode: 630-670 nm, < 1 mW
  • Laser class: 2
  • Working range: 5 m
  • Levelling accuracy: ± 0,5 mm/m
  • Self-levelling range: ± 4°
  • Power supply: 2 x 1,5-V-LR03 (AAA)
  • Tripod connection: 1/4"
  • Weight: 0.25 kg

Product : GLL 3X

  • Part no : 0 601 063 CJ0
  • Laser diode: 635 nm, < 1 mW
  • Laser class: 2
  • Working range:15 m
  • Levelling accuracy: ± 0,5 mm/m
  • Self-levelling range: ± 4°
  • Power supply: 4 x 1.5V LR6 (AA)
  • Tripod connection: 1/4"
  • Weight: 0.5 kg

Product : GLL 2-50

  • Part no: 0 601 063 100
  • Laser diode: 635 nm, < 1 mW
  • Laser class: 2
  • Working range:20 m
  • Levelling accuracy: ± 0.3 mm/m
  • Self-levelling range: ± 4°
  • Power supply: 3 x 1.5V LR6 (AA)
  • Tripod connection: 1/4"
  • Weight: 0.45 kg

Product : GLL 2-80 P

  • Part no : 0 601 063 205
  • Laser diode: 640 nm, < 1 mW
  • Laser class: 2
  • Working range:80 m with laser receiver & 40m without receiver
  • Levelling accuracy: ± 0.2 mm/m
  • Self-levelling range: ± 4°
  • Power supply: 4 x 1.5V LR6 (AA)
  • Tripod connection: 1/4",5/8"
  • Weight: 0.68 kg

Product : GLL 3-80 P

  • Part no : 0 601 063 300
  • Laser diode: 640 nm, < 1 mW
  • Laser class: 2
  • Working range: 40m
  • Levelling accuracy: ± 0.2 mm/m
  • Self-levelling range: ± 4°
  • Power supply: 3 x 1.5V LR03 (AA)
  • Tripod connection: 1/4",5/8"
  • Weight: 0.76 kg

Product : GTL 3

  • Range : 20 m
  • Dimensions: 6.125" x 4" x 3.875"
  • Material: Durable plastic with overmold in key impact areas
  • Accuracy: ± 0.2 mm/m
  • Laser Diode: Class II 635 nm, = 1 mW
  • Weight : 0.5kg

Rotation Laser

Product : GRL 300 HV Set

  • Laser diode: 635 nm, < 5 mW
  • Laser class: 3R
  • Working range: 60m
  • Levelling accuracy: ± 0.1 mm/m
  • Self-levelling range: ± 5°
  • Power supply: 2 x 1.2 V HR20 (D) (9 Ah), 2 x 1.5 V LR20 (D)
  • Tripod connection: 5/8"
  • Weight: 1.8 kg

Surface Laser

Product : GSL 2

  • Part no : 0 601 064 002
  • Laser diode: 635 nm, < 5 mW
  • Laser class: 3R
  • Working range: 10m
  • Levelling accuracy: ± 0.3 mm/m
  • Self-levelling range: ± 4°
  • Power supply: 10.8 V-LI ION battery
  • Tripod connection: 5/8"
  • Weight: 2 kg

Optic Level

Product : GOL 26 D

  • Part no : 0 601 068 000
  • Magnification: 26 x
  • Working range: 100m
  • Levelling accuracy: ± 0.2 mm/m
  • Tripod connection: 5/8"
  • Weight: 1.7 kg

Product : GOL 32 D

  • Part no : 0 601 068 500
  • Magnification: 26 x
  • Working range: 100m
  • Levelling accuracy: ± 0.2 mm/m
  • Weight: 1.7 kg

Inclinometer

Product : DNM 60 L

  • Part no : 0 601 014 000
  • Length : 60 cm
  • Measurement range : 0 – 360° (4 x 90°)
  • Electronics measurement accuracy 0°/90° : ± 0.05°
  • Electronics measuring accuracy at 1– 89° : ± 0.2°
  • Measurement accuracy, vials : 0.057° = ± 1 mm/m
  • Power supply, inclination measurement : 1 x 9 V 6LR61
  • Operating duration, inclination measurement, approx : 200 h
  • Automatic deactivation, approx : 5 mins
  • Weight : 0.7 kg

Product : DNM 120 L

  • Part no : 0 601 014 100
  • Measurement range : 0 – 360° (4 x 90°)
  • Electronics measurement accuracy 0°/90° : ± 0.05°
  • Electronics measuring accuracy at 1– 89° : ± 0.2°
  • Measurement accuracy, vials : 0.057° = ± 1 mm/m
  • Power supply, inclination measurement : 1 x 9 V 6LR61
  • Operating duration, inclination measurement, approx : 200 h
  • Automatic deactivation, approx : 5 mins
  • Weight : 1.3 kg

Angle Measurer

Product : DWM 40 L

  • Part no : 0 601 096 603
  • Measurement range : 0 – 220°
  • Measurement accuracy, vials : 0.057° = ± 1 mm/m
  • Automatic deactivation, approx : 5 mins
  • Power supply : 4 x 1.5V LR6 (AA)
  • Weight : 1.1 kg

Rangefinder

Product : DLE 40

  • Part no : 0 601 016 370
  • Measurement range : 0.05-40 m
  • Measurement accuracy, typical : ± 1.5 mm
  • Laser class : 2
  • Units of measurement : m or ft
  • Power supply : 4 x 1.5V LR03 (AAA)
  • Weight : 0.18 kg

Product : GLM 50

  • Part no : 0 601 072 270
  • Measurement range : 0.05-40 m
  • Measurement accuracy, typical : 1.5 mm
  • Laser class : 2
  • Power supply : 4 x 1.5 VLR03 (AAA)
  • Weight : 0.14 kg

Product : GLM 80

  • Part no : 0 601 072 3K0
  • Measurement range : 0.05-80 m
  • Measurement accuracy, typical : 1.5 mm
  • Laser class : 2
  • Units of measurement : m/cm/mm
  • Power supply : 3.7
  • Weight : 0.14 kg

Product : GLM 150

  • Part no : 0 601 072 070
  • Measurement range : 0.05-150 m
  • Measurement accuracy, typical : ± 1 mm
  • Laser class : 2
  • Units of measurement : m or ft
  • Power supply : 4x1.5 V (AA)
  • Weight : 0.24 kg

Product : GLM 250 VF

  • Part no : 0 601 072 170
  • Measurement range : 0.05-250 m
  • Measurement accuracy, typical : ± 1 mm
  • Laser class : 2
  • Units of measurement : m or ft
  • Power supply : 4x1.5 V (AA)
  • Weight : 0.24 kg

Laser Receiver

Product : LRI

  • Part no : 0 601 015 400
  • Working range : 0-200m
  • Measuring accuracy : 1mm/3mm
  • IP protected class : IP 65
  • Weight : 0.36kg
  • Suitable for : GRL 300HV Professional

Product : LR2

  • Part no : 0 601 069 100
  • Working range : 5-50m
  • Measuring accuracy : 1mm/3mm
  • IP protected class : IP 54
  • Weight : 0.20kg
  • Suitable for : GRL 3-80 P, GLL 2-80 P, GLL 2-50 Professional

Building Tripod

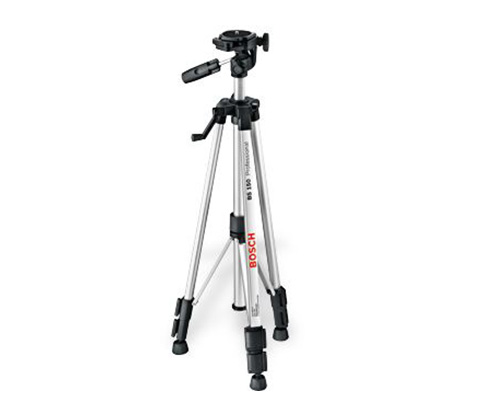

Product : BS 150

  • Part no : 0 601 096 974
  • Work height: 52-147 cm
  • Tripod tread : ¼ ”
  • Weight : 1.0 Kg
  • Suitable for : GPL 5 C, GPL 5, GPL 3, GLL 3-80 P, GLL 2-80 P, GLL 2-50, GLM 250 VF, GLM 150, DLE 70 Professional

Product : BT 160

  • Part no : 0 601 091 200
  • Work height: 97-160 cm
  • Tripod tread : 5/8” x 11
  • Weight : 4.1 Kg
  • Suitable for : GPL 5 C, GPL 5, GPL 3, GLL 3-80 P, GLL 2-80 P, GRL 300HV, BL 200 GC, GOL 26 G/D Professional with adapter, GLL 250VF, GLM 250 VF, DLE 70 Professional

Product : BT 170

  • Part no : 2 601 091 300
  • Work height: 107-1650 cm
  • Tripod tread : 5/8” x 11
  • Weight : 5.5 Kg
  • Suitable for : GPL 5, GLL 2, GLL 3-80 P, GLL 2-80 P, GRL 300 HV, GOL 26 D Professional

Wall Mounter

Product : WM 4

  • Part number : 0 601 092 400
  • Weight : 0.7 Kg
  • Suitable for : GRL 300 HV Professional. Ideal also in combination with the BT 350 Professional Telescopic pole

Telescopic pole

Product : BT 350

  • Part no : 0 601 015 B00
  • Work height/ dimensions : 140-350 cm
  • Sections : 3
  • Weight : 2.5 Kg
  • Suitable for : GPL 5, GLL 3-80 P, GLL 2-80 P professional. Ideal also in combination with the BM 1 professional universal mount

Levelling Staff

Product : GR 500

  • Part no : 0 601 094 300
  • Workheight/dimensions : Upto 5 m
  • Sections : 5
  • Weight : 1.98 Kg
  • Suitable for: GOL 26 D Professional
